MODI Pico 2 Flasher X360 TURBO

A fast, low-cost Xbox 360 NAND & eMMC service tool built around Pico 2 / RP2350. Designed for repair, backup and recovery.

0.9.1 Beta · public · hardware tested
DOWNLOAD UF2→ DOWNLOAD COMPLETE PACKAGE MANUAL
MODI High Speed to Turbo animation
~19 s16 MB NAND · READ
~24 s16 MB NAND · WRITE
RP2350PICO 2 PLATFORM
~$5–6CORE BOARD
TESTED HARDWARE

Speed that changed the workflow

Measured on tested hardware. Real times vary with motherboard, wiring, USB host and system configuration.

16 MB NAND

~19 s READ
~24 s WRITE

Jasper Big Block

76.9 s READ
90.2 s WRITE

Tested 64 MiB + spare range.

Corona eMMC

56–58 s READ
48.3 s WRITE

Tested relevant 48 MiB range.

MODI Pico 2 Flasher X360 TURBO
QUICK START

Download. Flash. Connect. Repair.

Public Beta is available as a ready one-click ZIP. No compiler or SDK required.

Get the release

Download the final MODI package and matching Pico 2 UF2 from Releases.

BOOTSEL → UF2

Put Pico 2 into BOOTSEL and copy the firmware file.

Connect hardware

Use the correct service points for the target NAND/eMMC type.

READ → BACKUP → VERIFY

Always create and verify a backup before any write operation.

DOWNLOAD UF2→DOWNLOAD COMPLETE PACKAGEPOLISH MANUALMANUAL EN
RP2350-PLUS · MODI HEADER

Pinout and wiring

Wire colors and header order checked against our real front and rear photographs. Open a diagram for full-size pad labels.

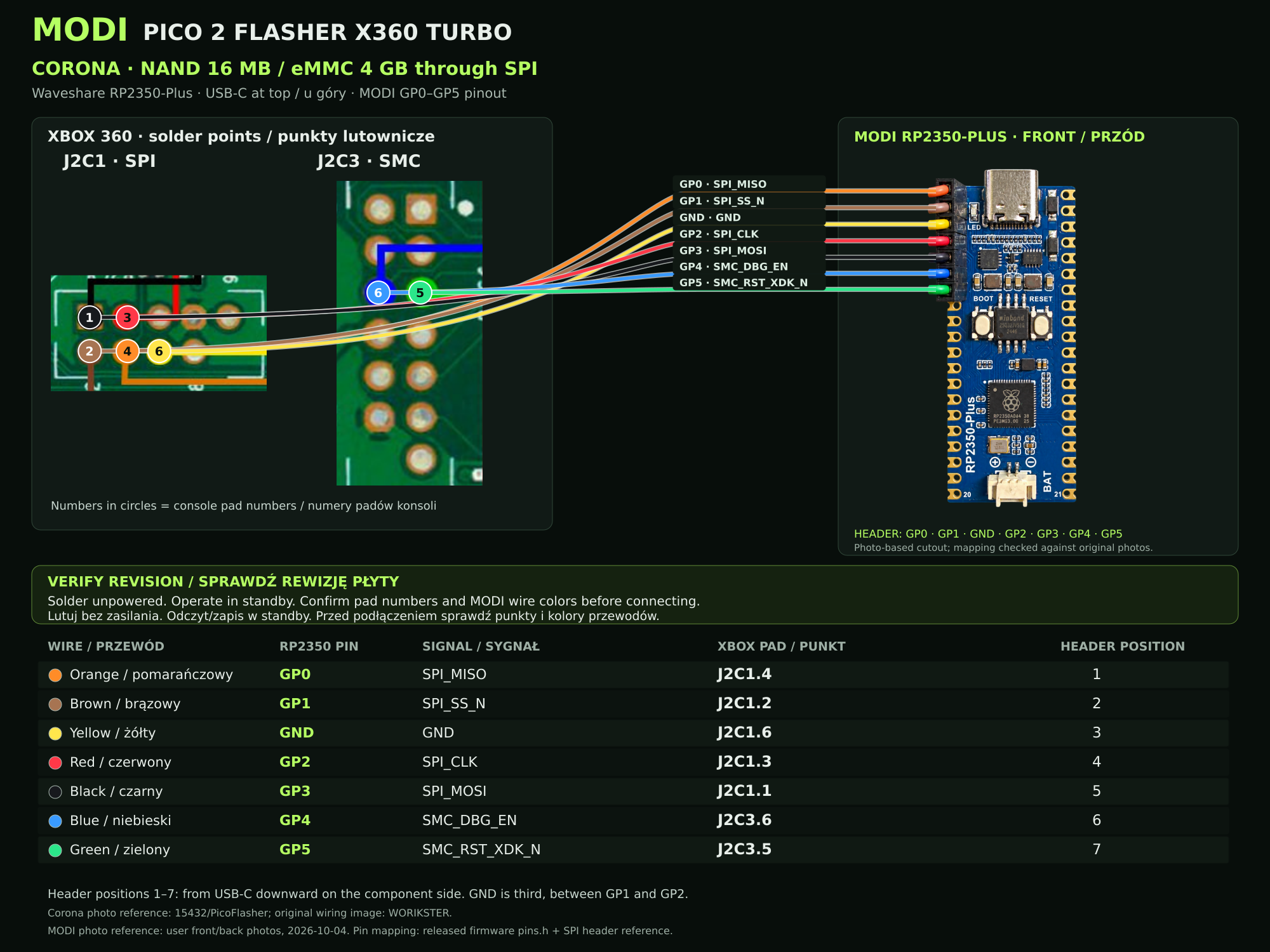

Corona

corona motherboard wiring to MODI RP2350-Plus

J2C1 + J2C3

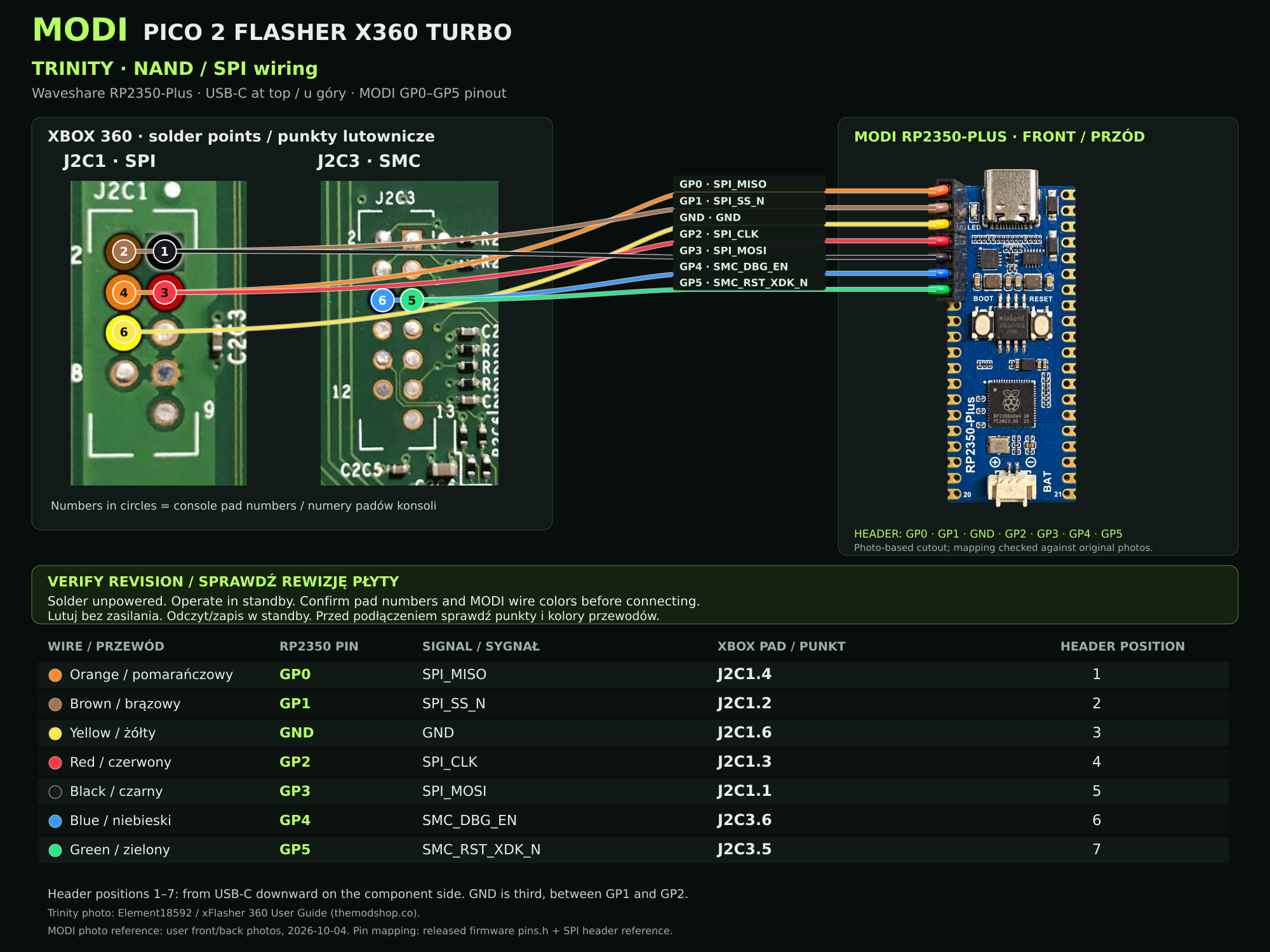

Trinity

trinity motherboard wiring to MODI RP2350-Plus

J2C1 + J2C3

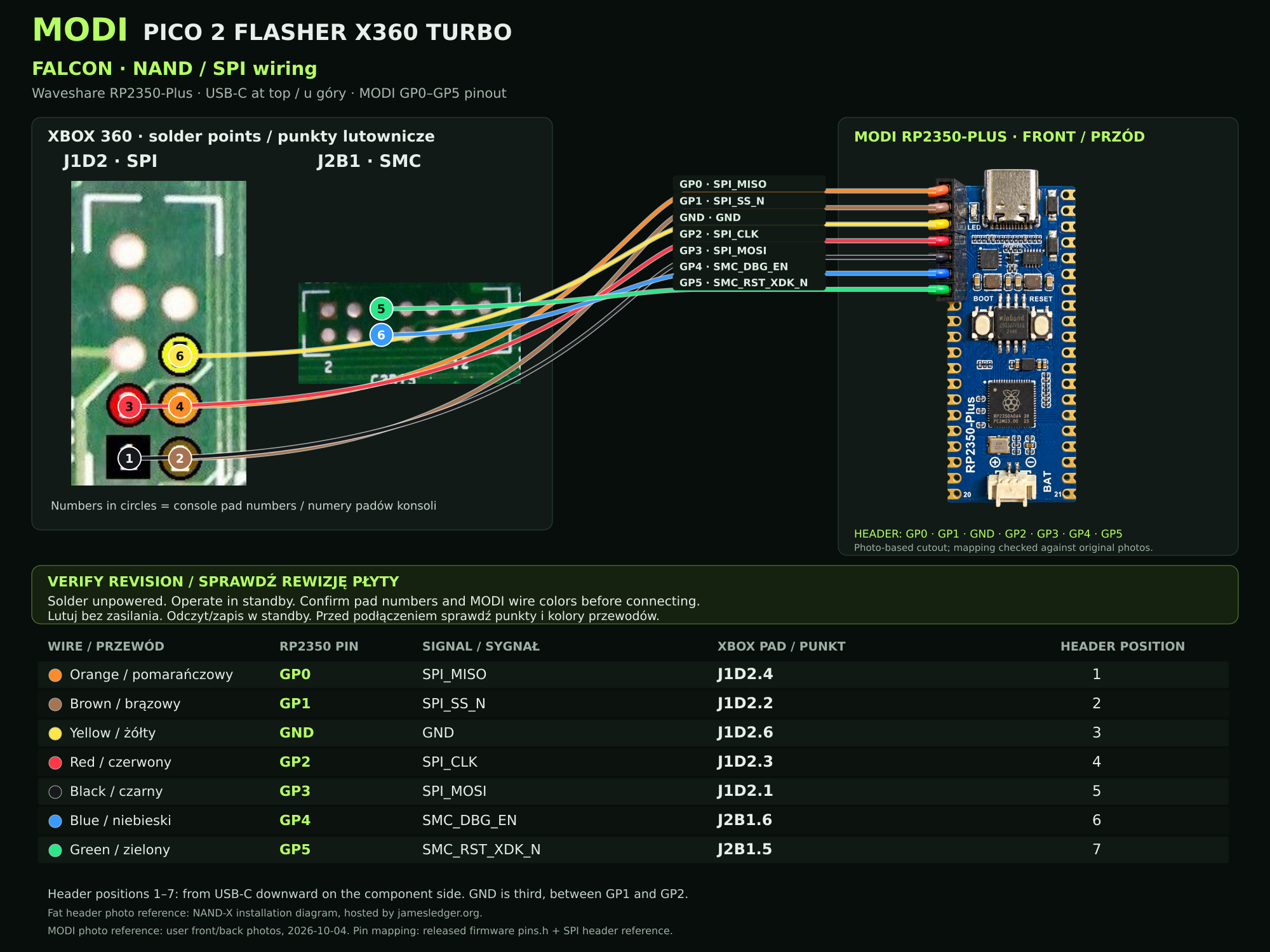

Falcon / Fat

falcon motherboard wiring to MODI RP2350-Plus

J1D2 + J2B1

From USB down: orange GP0 → brown GP1 → yellow GND → red GP2 → black GP3 → blue GP4 → green GP5.

Yellow is ground. Black is MOSI. Verify your motherboard revision and pad numbers. Our Corona 4 GB firmware uses the same SPI header. The Falcon diagram uses a common Fat reference photograph.
